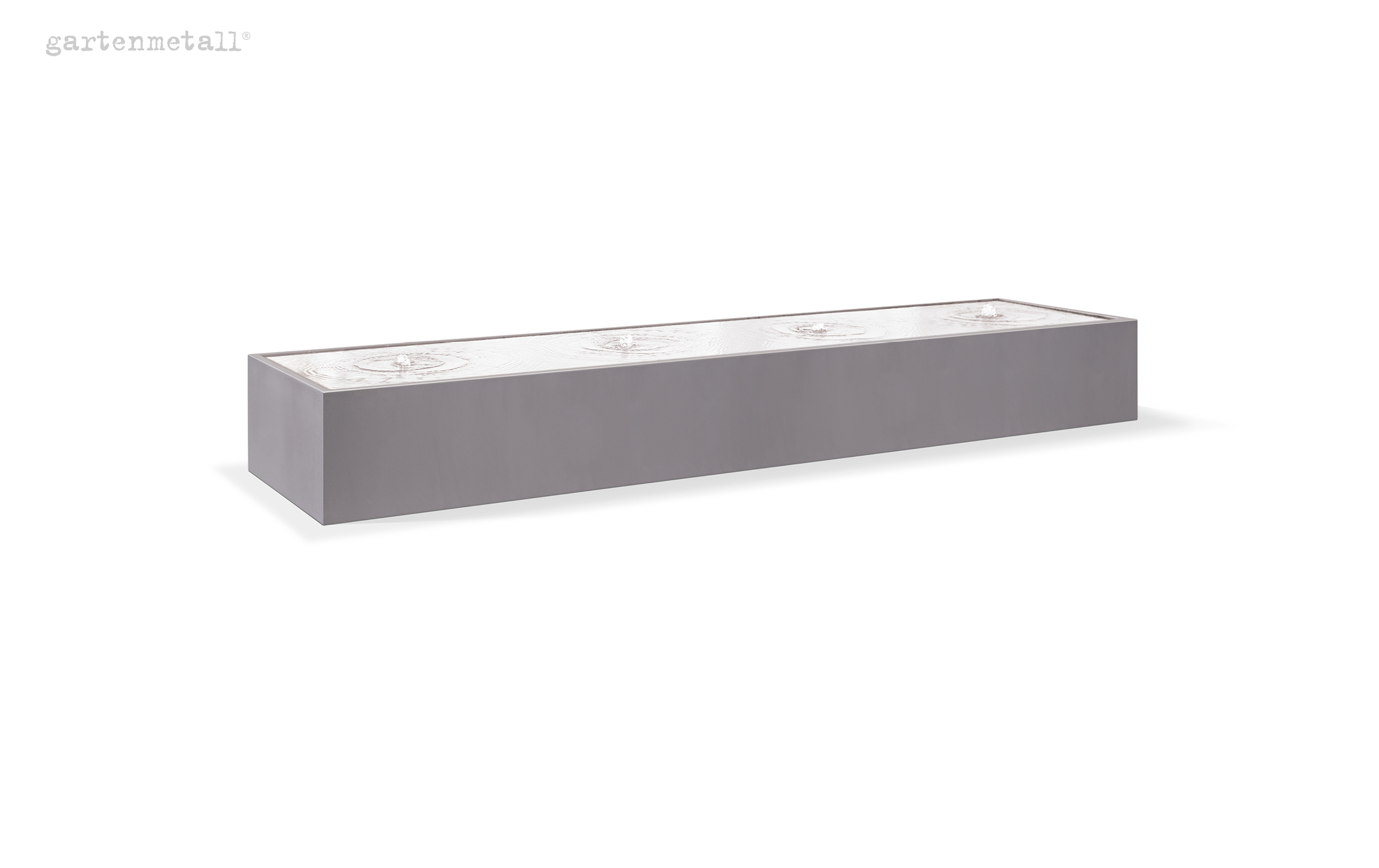

Multiple fountain AQUA CUBUS rectangular with rim 4000

Surface coated on all sides with a high-quality and weatherproof 2-component primer and the visible surfaces painted to standard RAL 7016 colour anthracite grey, fine structure, matt.
(special colours available at an extra charge)

Material thickness: 3 mm

Multiple source fountain AQUA CUBUS rectangular with rim with four source outlets

Dimensions cube
Height: 500 mm
Width: 1.000 mm
Length: 4,000 mm

incl. adjustment screws for fine adjustment on site

incl. 4x source borehole ø50 mm for LED source lighting and spiral hose

incl. 4x LED source lighting Quellstar 900
Light colour warm white, connection 220V, cable

incl. 2x universal connection for cable gland and cable gland element

incl. 1x universal connection for floor drain (incl. sealing cover)

incl. inspection cover

incl. 11,000 L pond pump, connection 220V with 10 m cable
and safety plug (type CEE /4),
colour black, plastic
(up to distribution 1.5 inch, then to 1 inch)

incl. connection material for spiral hose 1" (ø25 mm)

incl. integrated removal device with gas struts, assists in lifting the cover plate during maintenance

Interior coating Water trough with high-quality, elastic, UV-stable, black and waterproof Gartenmetall® plastic coating

Two sockets (shock-proof plug type CEE 7/4) are required:
1x water pump, 1x lighting

Note: Please note that the coating is not waterproof. In combination with UV light, the paint can fade.

It is possible to operate a 220V pump in the water basin, in the public area. However, it must be ensured that no one can come into contact with the water. (If this is not possible, all electrical devices over 12/24V must be installed at least 2m away from the object. This is governed by DIN VDE 0100-702 for semi-public and public areas.

In private areas, DIN EN 60335-2-41 (appliances for domestic use) is responsible. Here, 12/24V appliances may be operated in water. Example: DIY store and discount store fountains/ornamental fountains
