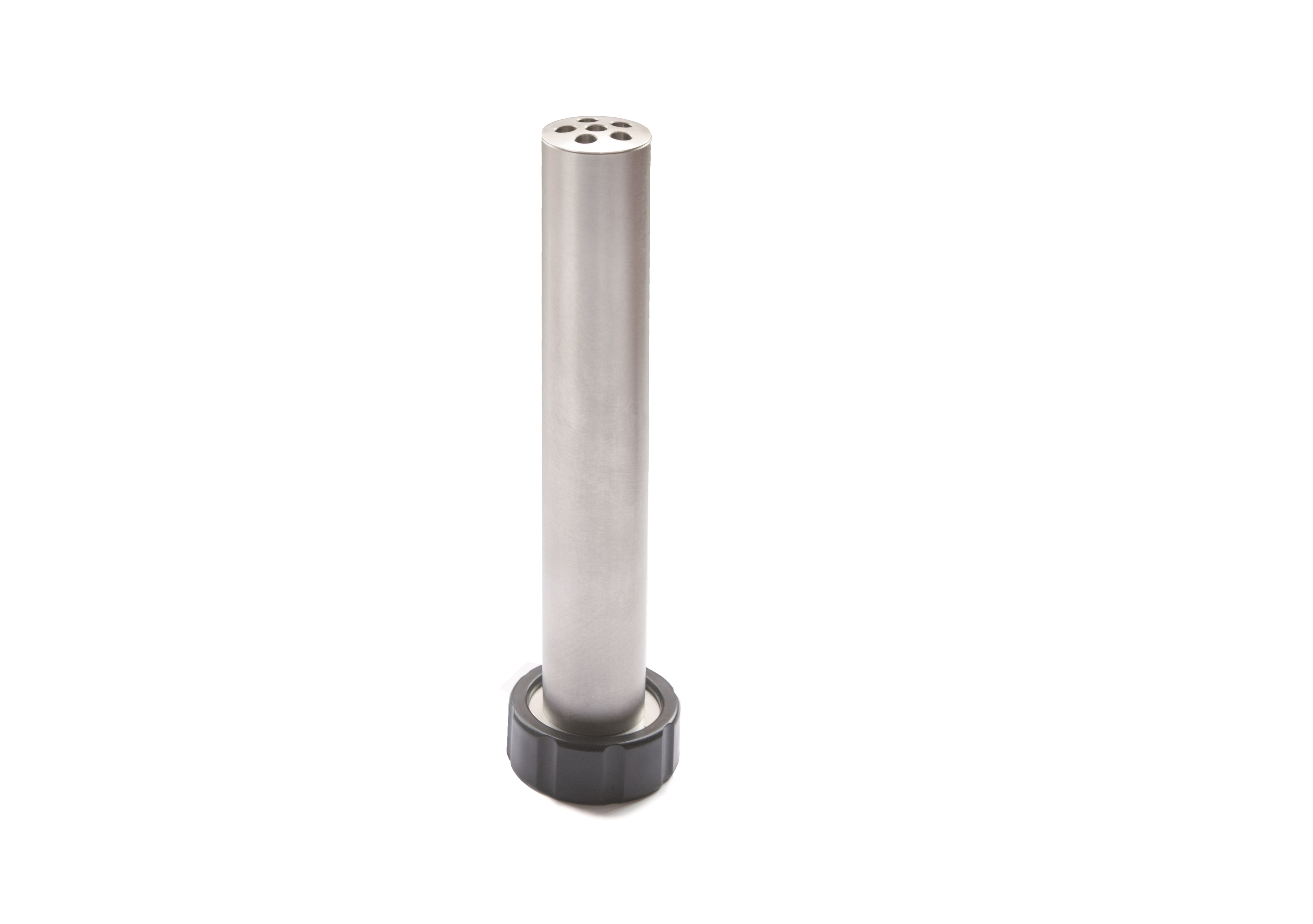

Overflow standpipe for water trough 750
Product number:
GA-221319-750-48
These are packing dimensions
Available, delivery time: 7-14 Tage
Product information "Overflow standpipe for water trough 750"
Material: Stainless steel V2A
ø48 mm as overflow pipe
for water trough height: 750 mm
Water edge approx. 50 mm below top edge
incl. Inlet strainer to prevent
blockages, strainer removable and replaceable
Supplied with union sleeve
with 2" internal thread
Prepared for attachment to
Universal grommet in water trough
(Art.GA-22 13 70) with 2" external thread
NOTE:
Overflow standpipe can be unscrewed.
Drainage possible up to approx. 30 mm above floor level
ø48 mm as overflow pipe
for water trough height: 750 mm
Water edge approx. 50 mm below top edge
incl. Inlet strainer to prevent
blockages, strainer removable and replaceable
Supplied with union sleeve
with 2" internal thread
Prepared for attachment to
Universal grommet in water trough
(Art.GA-22 13 70) with 2" external thread
NOTE:
Overflow standpipe can be unscrewed.
Drainage possible up to approx. 30 mm above floor level
detail.tabsContentTitle
| Accessories: | Water accessories |
|---|---|
| Material: | Stainless steel |
