Water bowl AQUA BOWL MODENA as 2-fold cascade
Product number:
GA-270353-0600-0800
These are packing dimensions
Is produced for you, delivery time 21-28 Tage
matching Accessories
The following products can be directly added separately to the shopping cart
Product information "Water bowl AQUA BOWL MODENA as 2-fold cascade"
Quality S355J2W+N
Material no. 1.8965

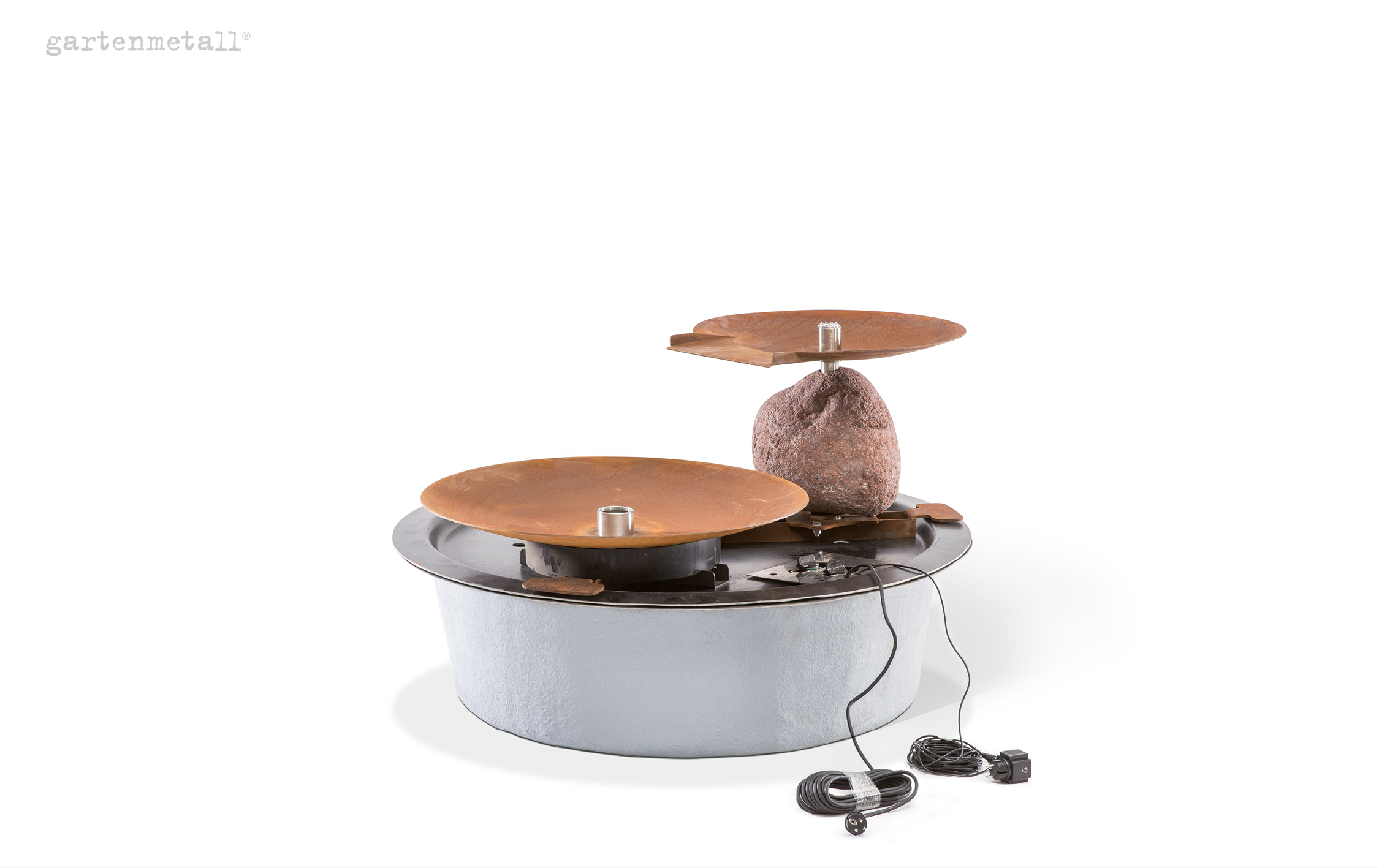

Spring fountain complete with noble water bowls as cascade fountain
Supplied completely functional incl. water collection bowls, pump, matching hoses, fittings and LED lighting at the water outlet
Material bowls: Corten steel
Design: FLAT
Diameter1: ø600 mm
Height: 50 mm
Water capacity: max. 10 litres
Placed on stainless steel inlet pipe, which is covered with a stone
With overflow into the lower tray
Diameter2: ø800 mm
Height: 80 mm
Water content: max. 20 litres
Bowl without overflow
Incl. lower part and connecting piece for setting up the lower water bowl.
The round geometry makes it easy and practical to align the water bowl.
Pump capacity: 5.000 l/h
for installation in the water bowl
Power connection 220 V with 10 m cable and shock-proof plug (type CEE /4),
Colour black, plastic
incl. connection material for spiral hose 1" (ø25 mm)
LED source lighting incl. power supply unit and supply cable. Beam angle 180°. Protection class IP68, protection class power supply unit: IP 44. Voltage 12V/AC, power 1.6 Watt, power connection 220 V with 10 m cable and safety plug (type CEE 7/4). Light colour warm white.
The water collection basin is buried in the ground under the AQUA BOWL spring fountain. The water bowl stands on a cover that is supplied with the water collection basin and is included in the scope of delivery.
Material of water collection basin: GRP plastic
Material of cover: GRP plastic
Diameter: ø1,250 mm - of which approx. 100 mm rim all round
Height: approx. 350 mm
Water capacity max. 330 litres
Due to storage, there may be scratches in the basin, which do not affect the stability and function.
OPTIONAL:
Supplement the water feature with an inlet pipe (Art. No. GA-27 13 58-M01) (surcharge)
Surface on the visible sides optically pre-rusted
Note on rust removal from the bowl:
Increased material removal in the water bowl is to be expected, especially until the final rust barrier layer has formed. This can also lead to blockage of the drain hole. It is therefore necessary to clean the bowl regularly during the rust-in phase so that the water can always drain off when the pump is switched off.
Material no. 1.8965
Spring fountain complete with noble water bowls as cascade fountain
Supplied completely functional incl. water collection bowls, pump, matching hoses, fittings and LED lighting at the water outlet
Material bowls: Corten steel
Design: FLAT
Diameter1: ø600 mm
Height: 50 mm
Water capacity: max. 10 litres
Placed on stainless steel inlet pipe, which is covered with a stone
With overflow into the lower tray
Diameter2: ø800 mm
Height: 80 mm
Water content: max. 20 litres
Bowl without overflow
Incl. lower part and connecting piece for setting up the lower water bowl.
The round geometry makes it easy and practical to align the water bowl.
Pump capacity: 5.000 l/h
for installation in the water bowl
Power connection 220 V with 10 m cable and shock-proof plug (type CEE /4),
Colour black, plastic
incl. connection material for spiral hose 1" (ø25 mm)
LED source lighting incl. power supply unit and supply cable. Beam angle 180°. Protection class IP68, protection class power supply unit: IP 44. Voltage 12V/AC, power 1.6 Watt, power connection 220 V with 10 m cable and safety plug (type CEE 7/4). Light colour warm white.
The water collection basin is buried in the ground under the AQUA BOWL spring fountain. The water bowl stands on a cover that is supplied with the water collection basin and is included in the scope of delivery.
Material of water collection basin: GRP plastic
Material of cover: GRP plastic
Diameter: ø1,250 mm - of which approx. 100 mm rim all round
Height: approx. 350 mm
Water capacity max. 330 litres
Due to storage, there may be scratches in the basin, which do not affect the stability and function.
OPTIONAL:
Supplement the water feature with an inlet pipe (Art. No. GA-27 13 58-M01) (surcharge)
Surface on the visible sides optically pre-rusted
Note on rust removal from the bowl:
Increased material removal in the water bowl is to be expected, especially until the final rust barrier layer has formed. This can also lead to blockage of the drain hole. It is therefore necessary to clean the bowl regularly during the rust-in phase so that the water can always drain off when the pump is switched off.
detail.tabsContentTitle
| Format: | Ø600 & Ø800 |
|---|---|
| Material: | Corten steel |
