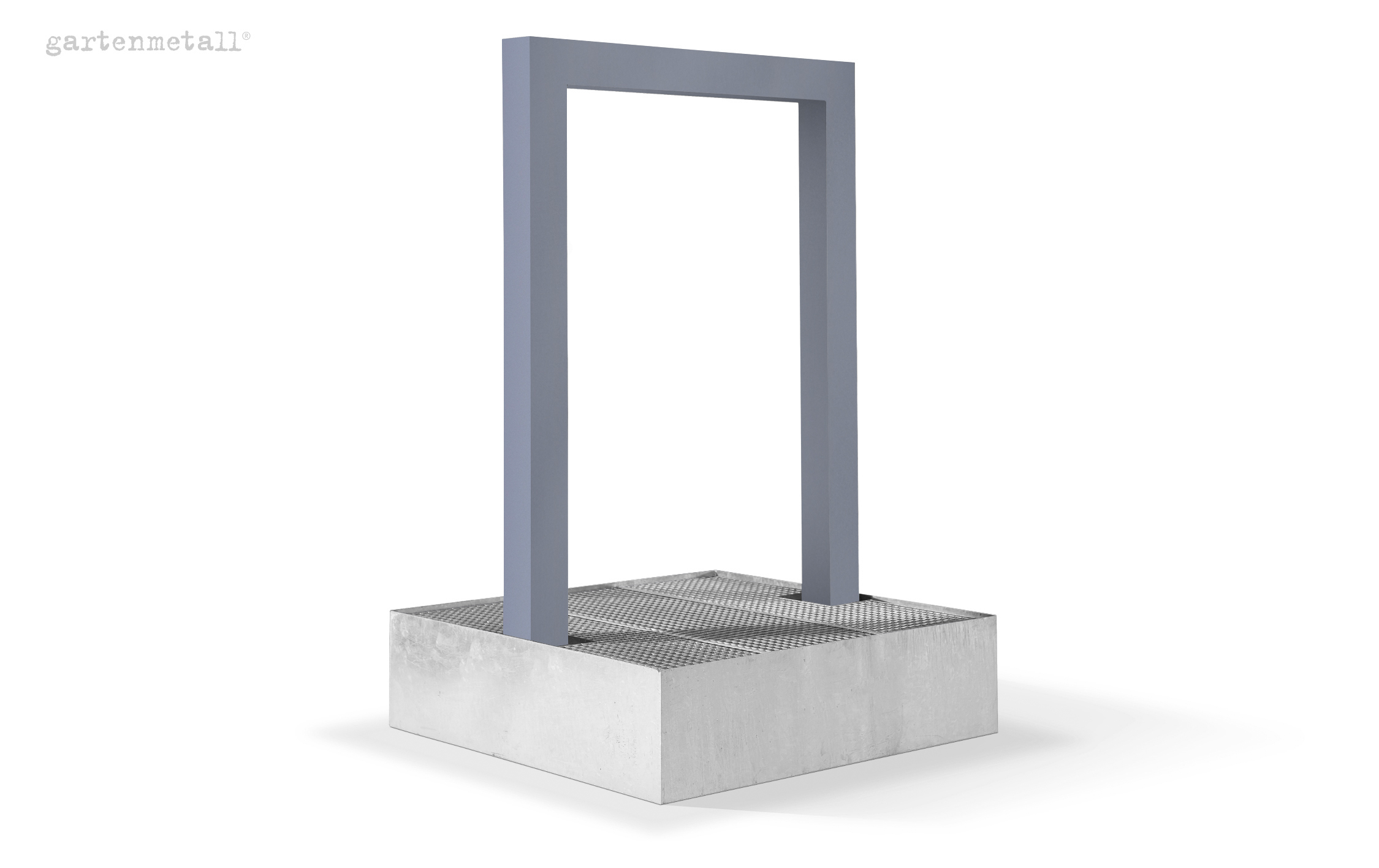

Water curtain AQUA RAIN 1500
Product number:
GA-241911-2350-1450-150
These are packing dimensions
Is produced for you, delivery time 21-28 Tage
matching Accessories
The following products can be directly added separately to the shopping cart
Product information "Water curtain AQUA RAIN 1500"
Surface coated on all sides with a high-quality, weatherproof 2-component primer and the visible surfaces painted to standard RAL 7016 colour anthracite grey, fine structure, matt finish.
(special colours available at an extra charge)
Total height: 2,350 mm
Total width: 1,450 mm
Water curtain U-shaped
Total height: 2,000 mm
Passage height: 1,800 mm
Length of water curtain rail: 1.000 mm
Passage frame width: 1,150 mm
Cross-section frame: 150x150 mm
incl. water collection vessel in hot-dip galvanised steel
Width / depth: 1,460 mm
Height: 400 mm
Length=Total width
incl. 1x cable gland (GA-22 13 29) for pumps
incl. 1x cover for closing
with 3-part removable grating, hot-dip galvanised steel
30 x 30 mm, 30 mm high
for covering the water surface, e.g. with ornamental gravel (e.g. with a cover). E.g. with ornamental gravel (provided by customer, not included in delivery)
Grating approx. 50 mm below OK water collection vessel
Water curtain rail with nozzle spacing 5 mm, double-row design
200 nozzles per metre
Supplied completely assembled
incl. Premium water pump 10,000 l/h with filter and ceramic axle
Housing PVC black
Hose D25 mm black
Connection 220-240 V, 10 m cable, black
Water pump in water collection vessel
incl. Cartridge filter with filter insert 250µm (filter cartridge can be washed out)
The water flow rate can be adjusted with a control element.
Important user note: the fine water outlet nozzles are susceptible to calcification and clogging by suspended matter (e.g. micro-algae). Therefore, operation is only recommended with decalcified water, even with soft water. A suspended matter filter with filter mesh 250 µm integrated in the feed pump is included in the scope of delivery, but it must be serviced regularly.
NOTE Wind:
The water curtain is very susceptible to wind. It is therefore recommended that the unit be installed in a wind-protected area or indoors. Then - and in the case of ground-level installation outdoors or indoors - we recommend supplementing the hot-dip galvanised water collection tank with an optically high-quality cladding (Art. No. GA-24 XX 18) (see specarate item)
Foundation: on site
NOTE Water pump:
The water pump is not frost-proof and must therefore be protected from frost in winter
Note: Please note that the paint is not waterproof. In combination with UV light, the paint may fade.
(special colours available at an extra charge)
Total height: 2,350 mm
Total width: 1,450 mm
Water curtain U-shaped
Total height: 2,000 mm
Passage height: 1,800 mm
Length of water curtain rail: 1.000 mm
Passage frame width: 1,150 mm
Cross-section frame: 150x150 mm
incl. water collection vessel in hot-dip galvanised steel
Width / depth: 1,460 mm
Height: 400 mm
Length=Total width
incl. 1x cable gland (GA-22 13 29) for pumps
incl. 1x cover for closing
with 3-part removable grating, hot-dip galvanised steel
30 x 30 mm, 30 mm high
for covering the water surface, e.g. with ornamental gravel (e.g. with a cover). E.g. with ornamental gravel (provided by customer, not included in delivery)
Grating approx. 50 mm below OK water collection vessel
Water curtain rail with nozzle spacing 5 mm, double-row design
200 nozzles per metre
Supplied completely assembled
incl. Premium water pump 10,000 l/h with filter and ceramic axle
Housing PVC black
Hose D25 mm black
Connection 220-240 V, 10 m cable, black
Water pump in water collection vessel
incl. Cartridge filter with filter insert 250µm (filter cartridge can be washed out)
The water flow rate can be adjusted with a control element.
Important user note: the fine water outlet nozzles are susceptible to calcification and clogging by suspended matter (e.g. micro-algae). Therefore, operation is only recommended with decalcified water, even with soft water. A suspended matter filter with filter mesh 250 µm integrated in the feed pump is included in the scope of delivery, but it must be serviced regularly.
NOTE Wind:
The water curtain is very susceptible to wind. It is therefore recommended that the unit be installed in a wind-protected area or indoors. Then - and in the case of ground-level installation outdoors or indoors - we recommend supplementing the hot-dip galvanised water collection tank with an optically high-quality cladding (Art. No. GA-24 XX 18) (see specarate item)
Foundation: on site
NOTE Water pump:
The water pump is not frost-proof and must therefore be protected from frost in winter
Note: Please note that the paint is not waterproof. In combination with UV light, the paint may fade.
detail.tabsContentTitle
| Format: | H2350 xW1450 |
|---|---|
| Material: | Colour coated |
