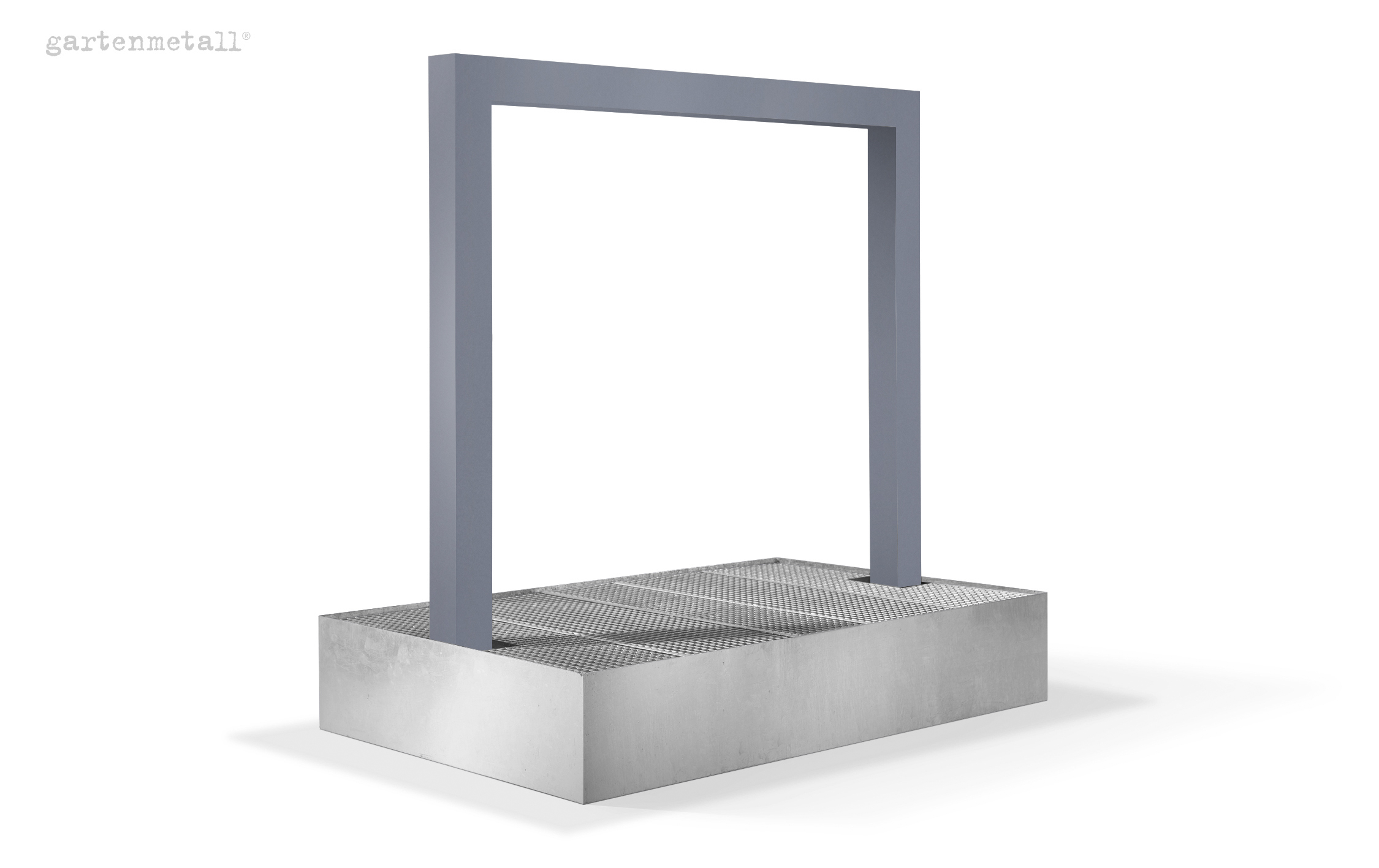

Water curtain AQUA RAIN 2500
Is produced for you, delivery time 28-35 Tage
Packing dimensions:
x x mm | 377 kgThe following products can be directly added separately to the shopping cart
(special colours available at an extra charge)
Total height: 2,350 mm
Total width: 2.450 mm
Water curtain U-shaped
Total height: 2,000 mm
Passage height: 1,800 mm
Length of water curtain rail: 2,000 mm
Passage frame width: 2.150 mm
Cross-section of frame: 150x150 mm
incl. water collection vessel in hot-dip galvanised steel
Width / depth: 2,450 mm / 1,460 mm
Height: 400 mm
Length=Total width
incl. 2x cable gland (GA-22 13 29) for pumps
incl. 1x cover for closing
with 5-part removable grating, hot-dip galvanised steel
30x30 mm, 30 mm high
for covering the water surface, e.g. with decorative gravel (on site, not included in delivery)
Grating approx. 50 mm below the top of the water collection vessel
Water curtain rail with nozzle spacing 5 mm, double-row design
200 nozzles per metre
Supplied fully assembled
incl. 2 pcs. premium water pump 5,000 l/h with filter basket and ceramic axle
Housing PVC black
Hose D25 mm black
Connection 220-240 V, 10 m cable, black
Water pump in the water collection vessel
incl. 2 pcs. Cartridge filter with filter insert 250µm (filter cartridge can be washed out)
The water flow rate can be adjusted with a control element.
Important user note: the fine water outlet nozzles are susceptible to calcification and clogging by suspended matter (e.g. micro-algae). Therefore, operation is only recommended with decalcified water, even with soft water. A suspended matter filter with filter mesh 250 µm integrated in the feed pump is included in the scope of delivery, but it must be serviced regularly.
NOTE Wind:
The water curtain is very susceptible to wind. It is therefore recommended that the unit be installed in a wind-protected area or indoors. Then - and in case of ground-level installation outdoors or indoors - we recommend supplementing the hot-dip galvanised water collection tank with an optically high-quality cladding (Art. No. GA-24 XX 18) (see spearate position)
LED lighting with 3 underwater spotlights optionally possible
(Art. No. GA-22 00 30)
Foundation: on site
NOTE Water pump:
The water pumps are not frost-proof and must therefore be protected from frost in winter
Note: Please note that the paintwork is not waterproof. In combination with UV light, the paint may fade.
| Format: | H2350 xW2450 |
|---|---|
| Material: | Colour coated |
