PORTA type 2 garden door DIN R 900 with support frame
Product number:
GA-590352-R-0900-1000
These are packing dimensions
Is produced for you, delivery time 14-21 Tage
matching Accessories
The following products can be directly added separately to the shopping cart
Product information "PORTA type 2 garden door DIN R 900 with support frame"
Quality S355J2W+N
Material no. 1.8965
Height of door leaf: 900 mm
Installation recommendation: 100 mm above floor
Installation height: 1,000 mm
Passage width: 1,014 mm
Width of door: 1.000 mm
Depth of door: 60 mm

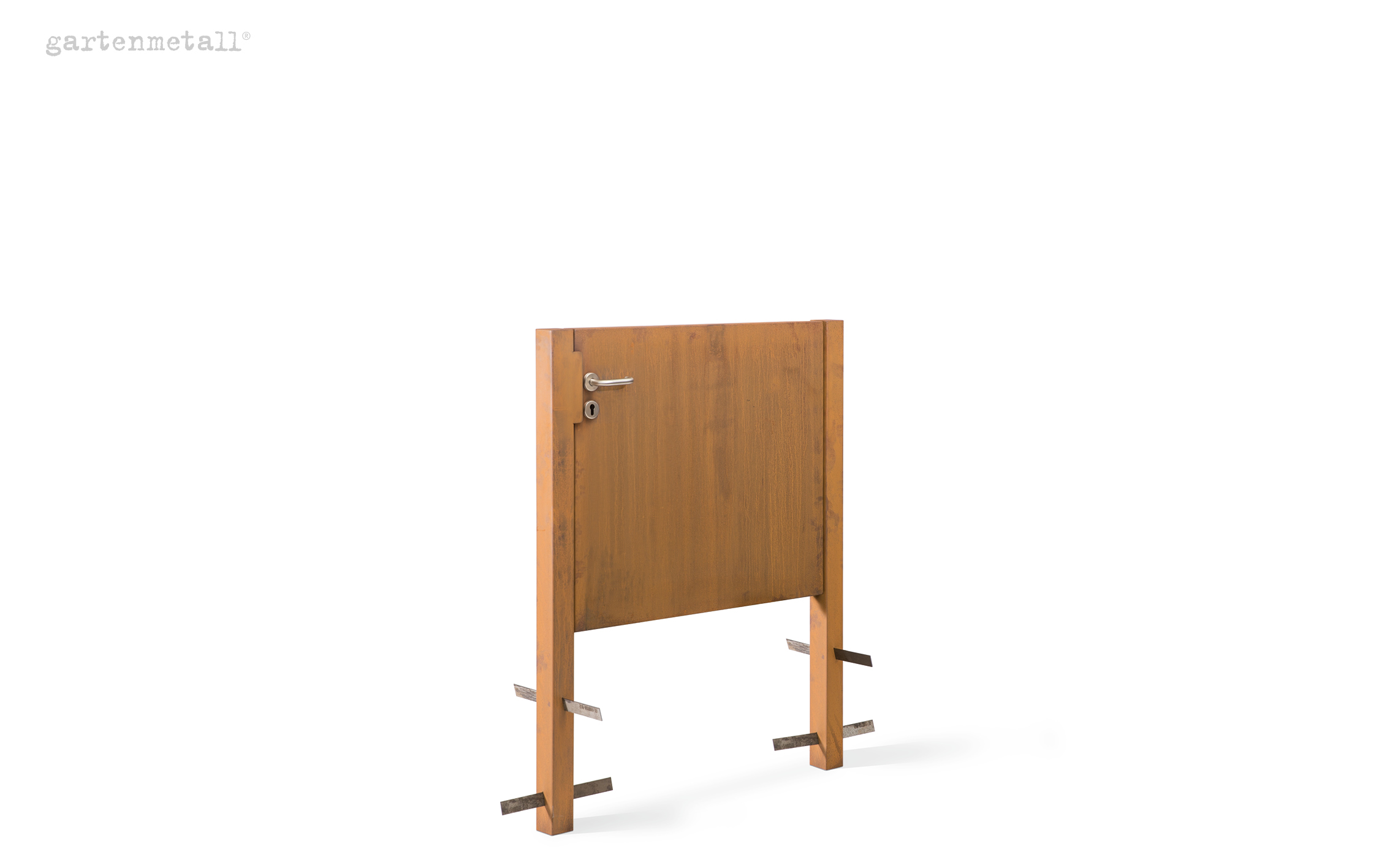

Assembly variant A
"Door leaf between two posts"
Delivery includes retaining posts for setting in concrete
Cross-section: 80x80 mm
Total length: 1,480 mm, of which approx. 480 mm in the floor
Corners rounded
Connections for hinge or strike plate
in retaining post suitable for garden door PORTA prepared
Door leaf
C-shaped bevelled on all sides
Door leaf closed
with support frame construction
Rear side with visible frame

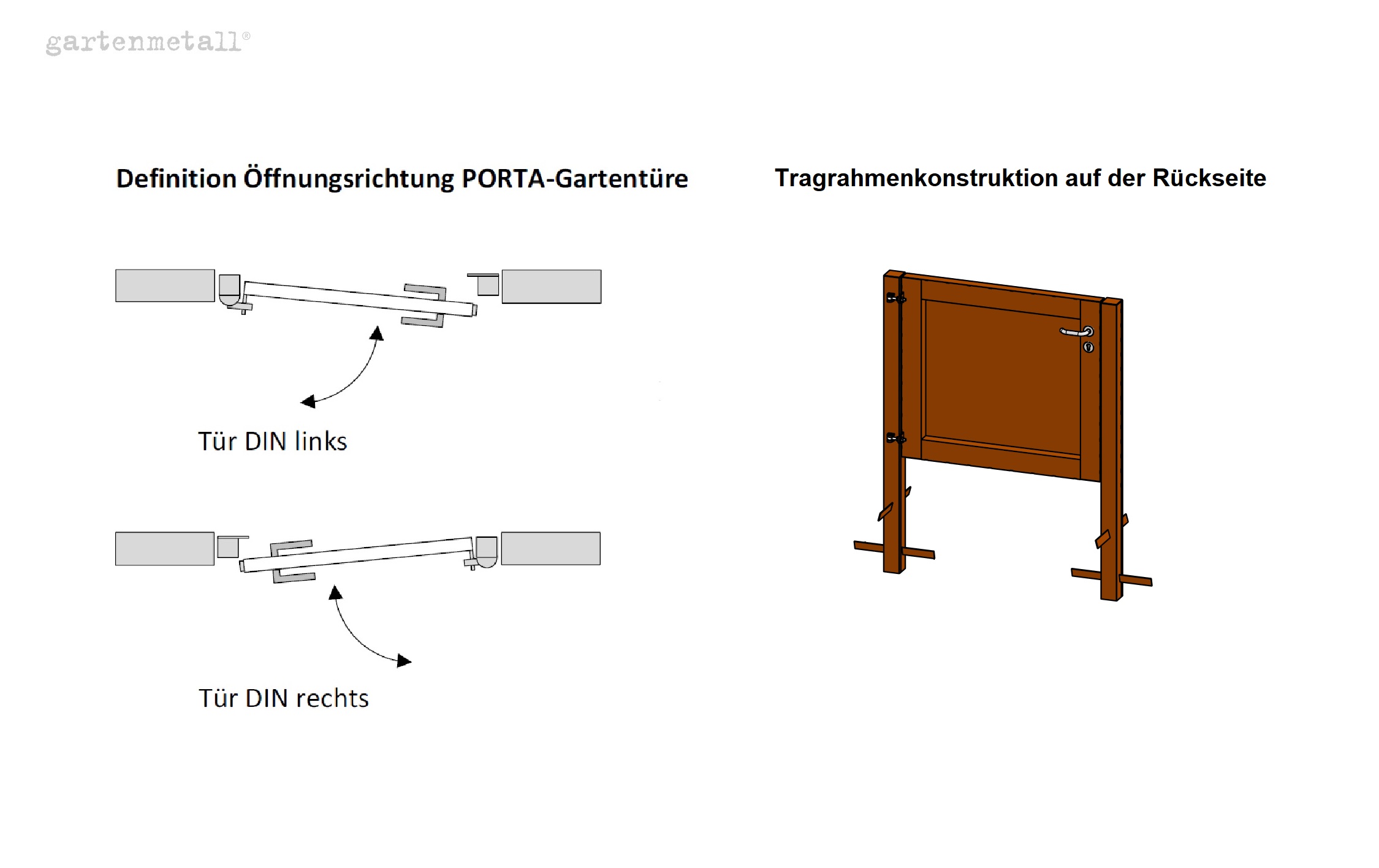

Opening direction: door DIN right
Door stop (hinges): inside
Strike plate with rubber buffer cushioned.
with galvanised lock case
Lock cylinder to be supplied by customer
Door fitting and handle set in stainless steel
Note: If a handle set with knob is ordered, an electric door opener (Art. No. GA-59 00 76) must also be ordered.
Surface Visible surfaces visually pre-rusted
In the case of garden doors made of Corten steel, a certain amount of rust detachment of 0.05 mm of the surface may occur, particularly in the first few years. Plan the installation in such a way that this rust detachment can run off in a defined manner.
Material no. 1.8965
Height of door leaf: 900 mm
Installation recommendation: 100 mm above floor
Installation height: 1,000 mm
Passage width: 1,014 mm
Width of door: 1.000 mm
Depth of door: 60 mm
Assembly variant A
"Door leaf between two posts"
Delivery includes retaining posts for setting in concrete
Cross-section: 80x80 mm
Total length: 1,480 mm, of which approx. 480 mm in the floor
Corners rounded
Connections for hinge or strike plate
in retaining post suitable for garden door PORTA prepared
Door leaf
C-shaped bevelled on all sides
Door leaf closed
with support frame construction
Rear side with visible frame
Opening direction: door DIN right
Door stop (hinges): inside
Strike plate with rubber buffer cushioned.
with galvanised lock case
Lock cylinder to be supplied by customer
Door fitting and handle set in stainless steel
Note: If a handle set with knob is ordered, an electric door opener (Art. No. GA-59 00 76) must also be ordered.
Surface Visible surfaces visually pre-rusted
In the case of garden doors made of Corten steel, a certain amount of rust detachment of 0.05 mm of the surface may occur, particularly in the first few years. Plan the installation in such a way that this rust detachment can run off in a defined manner.
detail.tabsContentTitle
| Format: | H900 |
|---|---|
| Material: | Corten steel |
| Mixed: | DIN right |
