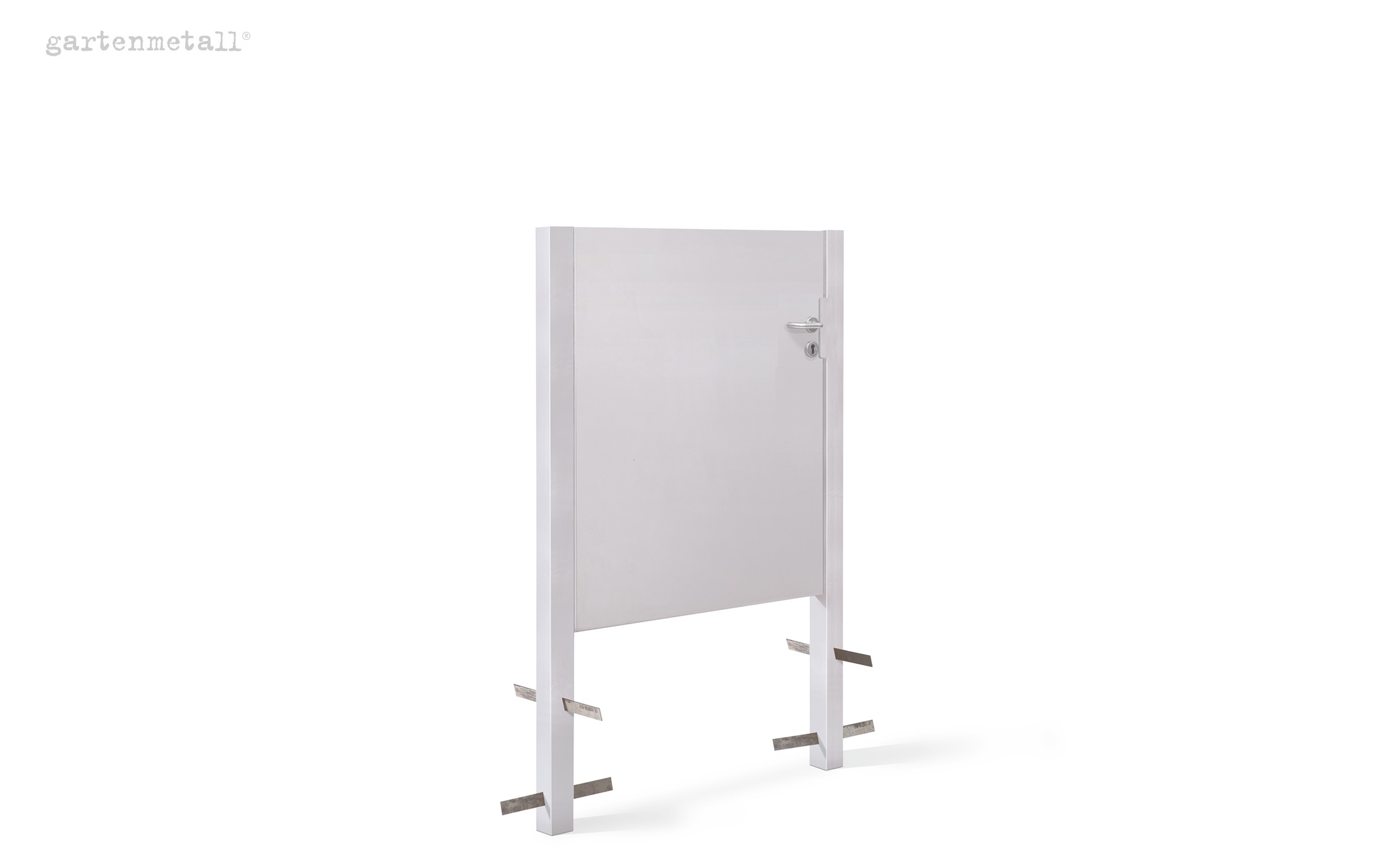

PORTA type 2 garden door DIN R 1.200 with support frame

Product number: GA-591352-R-1200-1000
0 Piece in stock

Is produced for you, delivery time 21-28 Tage

Packing dimensions:

x x mm | 72 kg

€4,316.73

Content: 1 Stück
;

Prices incl. VAT plus shipping costs

matching Accessories

The following products can be directly added separately to the shopping cart

Pcs.
SALES CONTACT +49 (0) 70 22 / 92 76-0
Product information "PORTA type 2 garden door DIN R 1.200 with support frame"
Surface rotex-ground

Height of door leaf: 1,200 mm
Installation recommendation: 100 mm above floor
Installation height: 1,300 mm
Passage width: 1,014 mm
Width of door: 1.000 mm
Depth of door: 60 mm

Assembly variant A
"Door leaf between two posts"
Delivery includes retaining post
Cross-section: 80x80 mm for setting in concrete
Total length: 1,780 mm, of which approx. 480 mm in the floor
Corners rounded

Connections for hinge or strike plate in retaining post Strike plate
in retaining post suitable for garden door PORTA prepared

Door leaf
C-shaped bevelled on all sides
Door leaf closed
with support frame construction
Rear side with visible frame

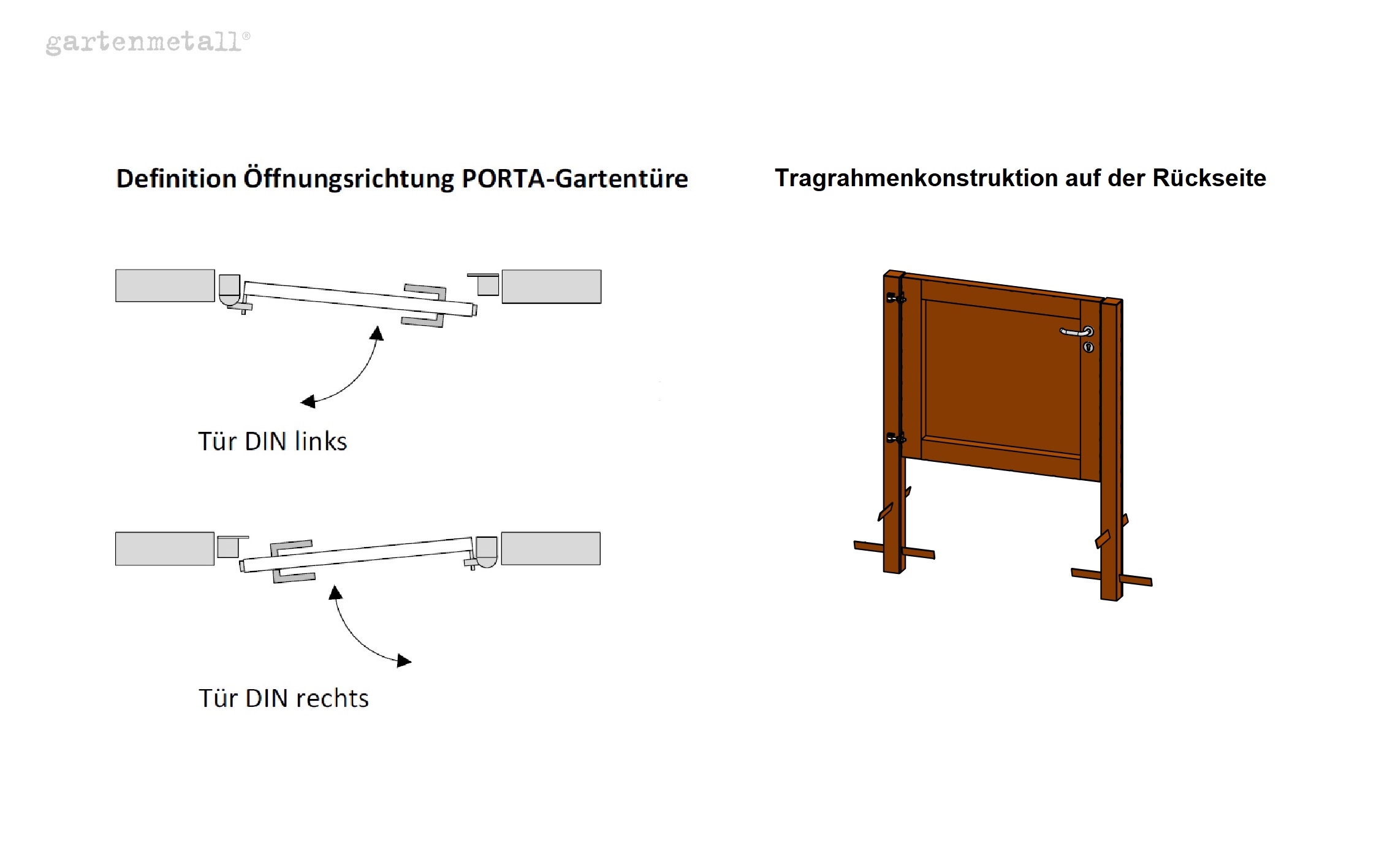

Opening direction: door DIN right
Door stop (hinges): inside

Strike plate with rubber buffer cushioned.

with galvanised lock case
Lock cylinder to be provided by customer

Door fitting and handle set in stainless steel

Note: If a handle set with knob is ordered, an electric door opener (Art. No. GA-59 00 76) must also be ordered.

Note: Stainless steel also requires care. Please observe the care instructions for stainless steel, which can be downloaded from www.gartenmetall.de.
Format: H1200
Material: Stainless steel
Mixed: DIN right
